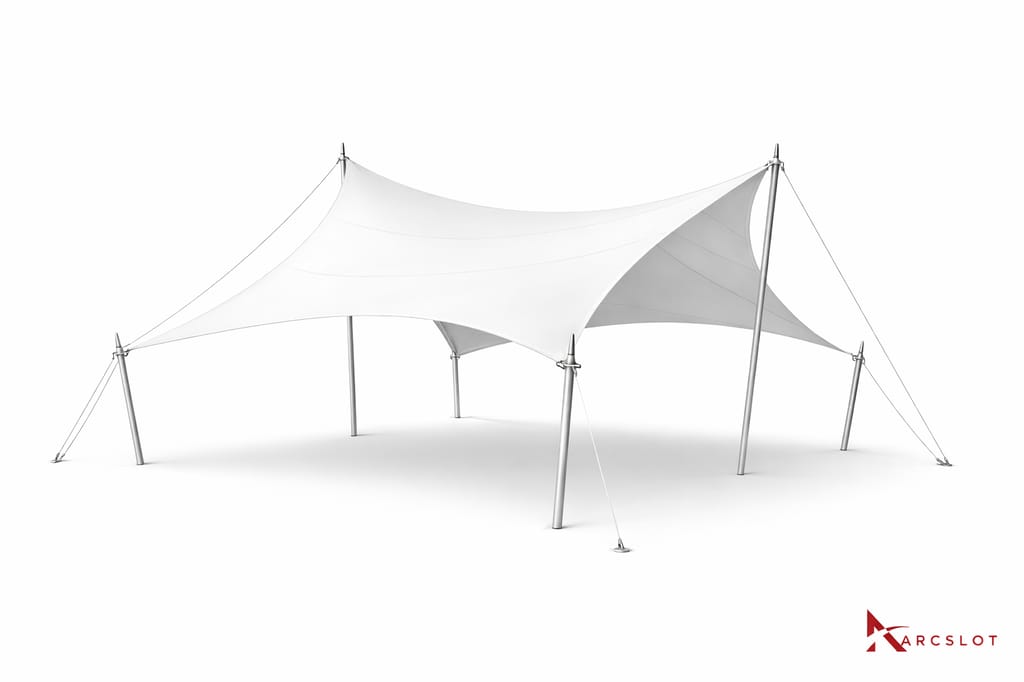

6946a64083941b364b16baf5 Roof Canopy - PVDF Roof Membrane (2.5 mts x 10.00 mts) - 25 mtrs https://www.arcslot.in/s/658553f810fa5ae45f2191a2/6946a10c6410f73a7c2ca209/2f41ed94-45b0-4a8c-af0f-0b42ca1ca992.png

PVDF Roof Membrane is a high-performance PVC-coated polyester fabric with a PVDF (Polyvinylidene Fluoride) top coating, engineered for long-lasting tensile roofing and architectural membrane structures. The PVDF layer provides superior UV resistance, dirt resistance, and color stability, making it ideal for demanding outdoor applications.



🔹 Key Features

  • 100% Waterproof – Seam-welded membrane ensures zero leakage
  • High Tensile Strength – Designed for large spans and wind loads
  • PVDF Protective Coating – Excellent resistance to UV, pollution, and fungal growth
  • Self-Cleaning Surface – Dust and dirt wash off easily with rain
  • Fire Retardant – Meets international fire safety standards (B1 / Class-1 available)
  • Light Diffusion – Allows natural daylight without glare
  • Color Stability – Retains appearance for years without yellowing


🔹 Technical Specifications (Typical)

  • Base fabric: High-tenacity polyester
  • Coating: PVC + PVDF top layer
  • Thickness: 0.6 – 1.2 mm
  • Weight: 650 – 1050 GSM
  • Tensile strength: 3000 – 8000 N / 5 cm
  • Operating temperature: –40°C to +70°C
  • Expected lifespan: 15 – 25 years

🔹 Applications

  • Tensile membrane roofs
  • Car parking & walkway canopies
  • Stadiums & sports complexes
  • Airports, metro stations & terminals
  • Resorts, hotels & commercial buildings
  • Atriums and entrance structures


🔹 Advantages Over Standard PVC

  • Better UV & weather resistance
  • Lower maintenance cost
  • Improved long-term aesthetics
  • Higher resistance to dust, chemicals, and pollution

🔹 Available Options

         GSM: 650 / 750 / 850 / 900 / 1050

  • Colors: White, off-white, grey, custom shades
  • Fire-retardant grades on request

🔹 Recommended Use

PVDF roof membranes are ideal for permanent or semi-permanent roofing structures where durability, safety, and aesthetics are critical.

SKU-8AAIYYBDLM
in stockINR 20709
1 1
Roof Canopy - PVDF Roof Membrane (2.5 mts x 10.00 mts) - 25 mtrs

Roof Canopy - PVDF Roof Membrane (2.5 mts x 10.00 mts) - 25 mtrs

₹20,709
₹23,895   (13% OFF)

Available Thickness in GSM:
Product Enquiry

Sold By: arcslot

Description of product

PVDF Roof Membrane is a high-performance PVC-coated polyester fabric with a PVDF (Polyvinylidene Fluoride) top coating, engineered for long-lasting tensile roofing and architectural membrane structures. The PVDF layer provides superior UV resistance, dirt resistance, and color stability, making it ideal for demanding outdoor applications.



🔹 Key Features

  • 100% Waterproof – Seam-welded membrane ensures zero leakage
  • High Tensile Strength – Designed for large spans and wind loads
  • PVDF Protective Coating – Excellent resistance to UV, pollution, and fungal growth
  • Self-Cleaning Surface – Dust and dirt wash off easily with rain
  • Fire Retardant – Meets international fire safety standards (B1 / Class-1 available)
  • Light Diffusion – Allows natural daylight without glare
  • Color Stability – Retains appearance for years without yellowing


🔹 Technical Specifications (Typical)

  • Base fabric: High-tenacity polyester
  • Coating: PVC + PVDF top layer
  • Thickness: 0.6 – 1.2 mm
  • Weight: 650 – 1050 GSM
  • Tensile strength: 3000 – 8000 N / 5 cm
  • Operating temperature: –40°C to +70°C
  • Expected lifespan: 15 – 25 years

🔹 Applications

  • Tensile membrane roofs
  • Car parking & walkway canopies
  • Stadiums & sports complexes
  • Airports, metro stations & terminals
  • Resorts, hotels & commercial buildings
  • Atriums and entrance structures


🔹 Advantages Over Standard PVC

  • Better UV & weather resistance
  • Lower maintenance cost
  • Improved long-term aesthetics
  • Higher resistance to dust, chemicals, and pollution

🔹 Available Options

         GSM: 650 / 750 / 850 / 900 / 1050

  • Colors: White, off-white, grey, custom shades
  • Fire-retardant grades on request

🔹 Recommended Use

PVDF roof membranes are ideal for permanent or semi-permanent roofing structures where durability, safety, and aesthetics are critical.
