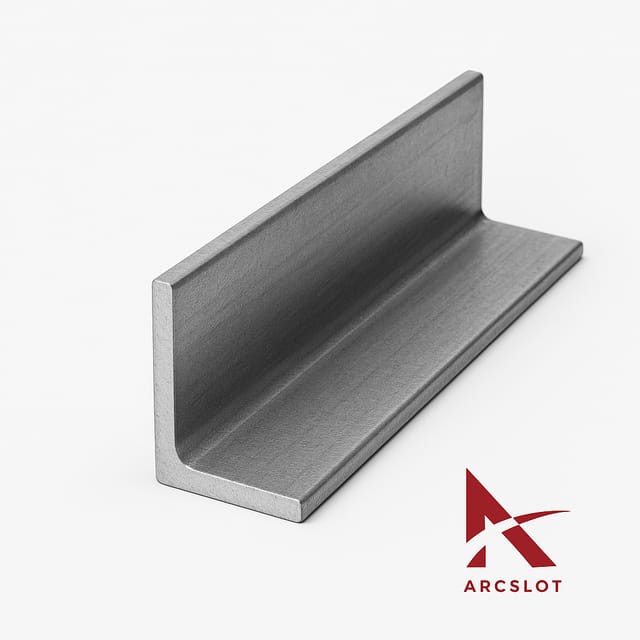

ARCSLOT ISA (Indian Standard Angle) is a hot-rolled L-shaped structural steel section designed for use in a wide range of construction and fabrication applications.

Manufactured as per IS 2062 and dimensioned according to IS 808, ISA angles offer excellent load-carrying capacity, stability and ease of fabrication.

They are widely used in trusses, support frameworks, transmission towers, industrial sheds and general structural fabrication.

The equal legs provide uniform strength in both directions, making ISA one of the most versatile and economical structural sections.

Key Features:

• Strong and rigid equal-leg design
• Conforms to IS 808 standard dimensions
• High strength-to-weight ratio
• Suitable for welding, bolting and riveting
• Durable and economical
• Available in IS 2062 E250 / E350 grades
• Mill test certificates available on request

Applications:

• Steel structures and trusses
• Transmission towers
• Industrial sheds
• Bracings and frames
• Platforms and walkways
• General fabrication
• Machinery supports

Technical Specifications (General):

• Standard: IS 808
• Material Grade: IS 2062 (E250 / E350)
• Leg Sizes: 20mm × 20mm up to 200mm × 200mm
• Thickness: 3mm – 20mm (size dependent)
• Length: 6m / 12m (standard)
• Type: Equal angle
